When you need to conceal wiring and electronics without visible bulges on your walls, low-profile junction boxes are your solution. You’ll find options ranging from shallow remodel boxes with 8 cubic inches to waterproof designs rated IP65 or IP67 for outdoor protection. Each box type offers specific advantages—from tool-free installation to fire-rated materials—but choosing the right one depends on your space constraints and application requirements. The right selection makes all the difference, so here’s what you need to know first.
| 2Packs Junction Box IP65 Waterproof ABS Plastic |
| Best Waterproof DIY | Material Type: ABS plastic | Waterproof Rating: IP65 | Primary Application: DIY electronics/Arduino projects | VIEW LATEST PRICE | Read Our Analysis |
| Plastic Electrical Box Shallow Remodel 8 Cubic Inch |
| Best For Remodeling | Material Type: PVC plastic | Waterproof Rating: Non-waterproof | Primary Application: Residential electrical wiring | VIEW LATEST PRICE | Read Our Analysis |
| MIARALA Black Splice Junction Box (6 Pack) |
| Best Safety Features | Material Type: PC+ABS plastic | Waterproof Rating: Non-waterproof | Primary Application: Residential/commercial wire splicing | VIEW LATEST PRICE | Read Our Analysis |
| LeMotech ABS Plastic Project Box (5-Pack) |
| Most Compact | Material Type: ABS plastic | Waterproof Rating: Non-waterproof | Primary Application: Small electronics/hobby projects | VIEW LATEST PRICE | Read Our Analysis |
| RACO 404 Switch Box Electrical 1-in. Deep |
| Professional Grade | Material Type: Alloy steel | Waterproof Rating: Non-waterproof | Primary Application: Switch/receptacle installation | VIEW LATEST PRICE | Read Our Analysis |
| DGZZI Plastic Waterproof Electrical Junction Box (4-Pack) |
| Best Budget Pick | Material Type: ABS plastic | Waterproof Rating: Waterproof | Primary Application: Electronics projects/power supply | VIEW LATEST PRICE | Read Our Analysis |
| Hubbell-Raco 4-Inch Round Ceiling Pan Gray |
| Best Ceiling Installation | Material Type: Alloy steel | Waterproof Rating: Non-waterproof | Primary Application: Ceiling light fixture installation | VIEW LATEST PRICE | Read Our Analysis |
| Two Galvanized Steel Round Electrical Box (4″) |
| Best Metal Construction | Material Type: Galvanized steel | Waterproof Rating: Non-waterproof | Primary Application: Ceiling/wall lighting fixtures | VIEW LATEST PRICE | Read Our Analysis |
| Project BoxI P67 Waterproof Electronic Junction Box |
| Best Premium Protection | Material Type: ABS plastic | Waterproof Rating: IP67 | Primary Application: Outdoor electrical/solar systems | VIEW LATEST PRICE | Read Our Analysis |
| Wiremold Metal Raceway Power Outlet Box (BW2-D) |
| Best For Home Offices | Material Type: Metal raceway | Waterproof Rating: Non-waterproof | Primary Application: Surface-mounted power extension | VIEW LATEST PRICE | Read Our Analysis |
| Legrand Wiremold Outlet Box White (NMW2-D) |
| Best Versatile Solution | Material Type: Metal raceway | Waterproof Rating: Non-waterproof | Primary Application: Surface-mounted power extension | VIEW LATEST PRICE | Read Our Analysis |
| ICC Low Profile Surface Mount Back Box White |
| Best Data Applications | Material Type: Plastic | Waterproof Rating: Non-waterproof | Primary Application: Voice/data/communications cabling | VIEW LATEST PRICE | Read Our Analysis |
| Cable Matters Low Voltage Surface Mount Backbox (5-Pack) |
| Best Bulk Value | Material Type: Plastic | Waterproof Rating: Non-waterproof | Primary Application: Low voltage communications drops | VIEW LATEST PRICE | Read Our Analysis |
| YXQ Waterproof Project Enclosure Case Junction Box (12-Pack) |
| Best Ultra-Compact | Material Type: ABS plastic | Waterproof Rating: Waterproof | Primary Application: Electronics projects/switches | VIEW LATEST PRICE | Read Our Analysis |
| PVC Plastic Junction Box 9x6x3 IP65 Waterproof |
| Best Overall Performance | Material Type: ABS/PVC plastic | Waterproof Rating: IP65 | Primary Application: Residential/outdoor electrical enclosures | VIEW LATEST PRICE | Read Our Analysis |
More Details on Our Top Picks
2Packs Junction Box IP65 Waterproof ABS Plastic
Looking for a waterproof DIY enclosure that actually performs outdoors? You get two black ABS plastic boxes measuring 3.94 x 2.68 x 1.97 inches with IP65 waterproof rating. This rating blocks water, rain, dust, snow, and oil splashes effectively. The interior space of 3.66 x 2.4 x 1.69 inches accommodates most electronics projects. You receive stainless steel screws, sealing gaskets, and M16 cable glands for secure assembly. The material resists impact, moisture, UV damage, and corrosion. You can easily drill and shape the boxes without cracking. This makes them ideal for Arduino enclosures, power supplies, and temperature controllers. The fixed ear design ensures stable mounting in various positions and environments.
- Material Type:ABS plastic
- Waterproof Rating:IP65
- Primary Application:DIY electronics/Arduino projects
- Capacity/Size Category:Small (3.94 x 2.68 x 1.97 in)
- Installation Type:Fixed ear mounting
- Certifications/Standards:None specified
- Additional Feature:Includes cable glands/gaskets
- Additional Feature:Fixed ear design mounting
- Additional Feature:Easy drilling without cracking
Plastic Electrical Box Shallow Remodel 8 Cubic Inch
Need an outlet box that fits existing walls without major reconstruction? This single-gang shallow remodel box delivers practical solutions for tight spaces. The 8 cubic inch capacity houses four 14 AWG wires or three 12 AWG wires. You’ll install it directly into drywall using the integrated mounting brackets. The solid PVC construction meets ETL standards and performs in 2-hour fire-rated walls. Dimensions measure 4.25″ long, 2.4″ wide, and 1.24″ deep, accommodating switches and receptacles efficiently. Airmont Products manufactures this durable option for straightforward electrical work. The shallow profile disappears seamlessly behind outlet covers, making it ideal when you can’t relocate studs or access wall cavities from behind.
- Material Type:PVC plastic
- Waterproof Rating:Non-waterproof
- Primary Application:Residential electrical wiring
- Capacity/Size Category:Medium (4.25 x 2.4 x 1.24 in)
- Installation Type:Drywall remodel/old-work
- Certifications/Standards:ETL Listed, fire-rated
- Additional Feature:Single gang old work
- Additional Feature:Fire-rated wall acceptable
- Additional Feature:Four 14 AWG capacity
MIARALA Black Splice Junction Box (6 Pack)
The MIARALA Black Splice Junction Box works best for anyone who needs electrical connections without disconnecting existing wires. You’ll open the box, insert your connectors into the six wiring slots, then close and secure it with screws. The premium PC+ABS material has a V0 flame-retardant rating and passes UL514C and UL94-V0 safety tests. Its precision hinge withstands 50,000 open-close cycles, making it durable for residential and commercial use. Retaining clips prevent accidental openings. Before purchasing, verify that your cables fit through the 0.4-inch maximum diameter opening.
- Material Type:PC+ABS plastic
- Waterproof Rating:Non-waterproof
- Primary Application:Residential/commercial wire splicing
- Capacity/Size Category:Medium (open splice box)
- Installation Type:Splice (no disconnection needed)
- Certifications/Standards:UL514C, UL94-V0 flame-retardant
- Additional Feature:V0 flame retardant rating
- Additional Feature:50,000 open/close cycles
- Additional Feature:Precision mechanical hinge design
LeMotech ABS Plastic Project Box (5-Pack)
Want your electronics projects contained without bulk? LeMotech’s ABS plastic boxes offer compact storage for ESP32 boards, ESP8266 modules, and PCB components. Each box measures 2.36 by 1.41 by 0.66 inches externally, with interior dimensions of 2.17 by 1.22 by 0.47 inches. The durable plastic construction allows you to drill mounting holes without cracking. You’ll receive five boxes per pack, providing multiple project solutions. Their small size makes them ideal for portable electronics, hobby prototyping, and component organization. The robust build withstands repeated use and drilling modifications. Stack them efficiently or distribute them across different projects without taking up significant workspace.
- Material Type:ABS plastic
- Waterproof Rating:Non-waterproof
- Primary Application:Small electronics/hobby projects
- Capacity/Size Category:Extra-small (2.36 x 1.41 x 0.66 in)
- Installation Type:DIY drilling/mounting
- Certifications/Standards:None specified
- Additional Feature:Compact hobby/storage design
- Additional Feature:Easy drilling without cracking
- Additional Feature:Five piece pack included

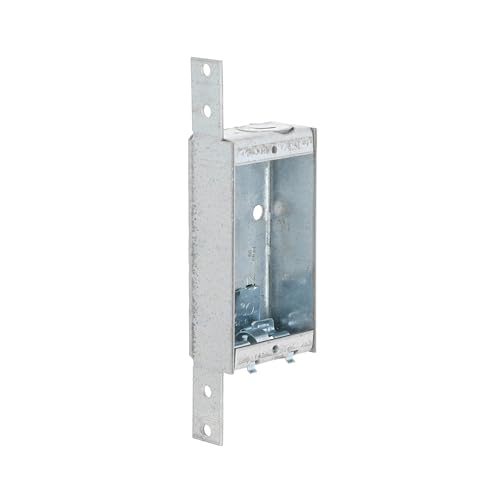

RACO 404 Switch Box Electrical 1-in. Deep
RACO’s professional-grade 404 switch box delivers the shallow mounting depth you need for tight spaces. This alloy steel box measures 3-3/4 by 2 inches with a 1-inch depth, fitting perfectly behind furring strips and 1/4-inch paneling. You’ll find two NMSC cable clamps included for securing nonmetallic sheathed cable, plus one 1/2-inch knockout for additional connections. The pre-scored D bracket breaks off if you don’t need it. With 6.5 cubic inches of capacity, this box houses switches and receptacles safely. Its welded side stud bracket ensures stable installation, and it meets fire-rated wall requirements.
- Material Type:Alloy steel
- Waterproof Rating:Non-waterproof
- Primary Application:Switch/receptacle installation
- Capacity/Size Category:Small (3.75 x 2 x 1 in, 6.5 cu in)
- Installation Type:Stud bracket/panel mounting
- Certifications/Standards:None specified
- Additional Feature:Welded side stud bracket
- Additional Feature:Two NMSC cable clamps
- Additional Feature:D bracket pre-scored breakoff
DGZZI Plastic Waterproof Electrical Junction Box (4-Pack)
Need a budget-friendly enclosure for DIY electronics projects? The DGZZI junction boxes offer compact protection in a 4-pack. These ABS plastic cases measure 3.15 x 1.97 x 0.79 inches, fitting snugly in tight spaces. Installation requires no tools—you simply snap the waterproof housing together. The durable construction resists dust, rust, and moisture, making it ideal for portable or battery-powered projects. You can drill holes and shape openings for LCDs, buttons, sockets, and LEDs to customize each box. These enclosures work well for student electronics projects, amplifiers, and power supply housings. The sturdy design keeps your internal components clean and protected from environmental damage while maintaining a low-profile appearance.
- Material Type:ABS plastic
- Waterproof Rating:Waterproof
- Primary Application:Electronics projects/power supply
- Capacity/Size Category:Small (3.15 x 1.97 x 0.79 in)
- Installation Type:Tool-free installation
- Certifications/Standards:None specified
- Additional Feature:Tool-free installation design
- Additional Feature:LCD/LED customizable openings
- Additional Feature:Quick assembly configuration
Hubbell-Raco 4-Inch Round Ceiling Pan Gray
The Hubbell-Raco 4-Inch Round Ceiling Pan Gray works for installers who need a reliable ceiling fixture housing that stays out of sight. This alloy steel pan measures 4 inches round and sits 1/2 inch deep, holding a 6 cubic inch capacity. You’ll use it to close outlet boxes and mount ceiling or wall lighting fixtures securely. The polished gray finish blends with standard ceilings. Key-hole mounting and combination screw heads speed up installation. The 1/2-inch bottom knockouts accommodate standard wiring connections. At 0.3 pounds, it’s lightweight yet durable. This unit comes with a 1-year warranty and qualifies for a 30-day return policy, making it a practical choice for professional electrical work.
- Material Type:Alloy steel
- Waterproof Rating:Non-waterproof
- Primary Application:Ceiling light fixture installation
- Capacity/Size Category:Medium (4 in round, 6 cu in)
- Installation Type:Key-hole/screw mounting
- Certifications/Standards:1-year warranty
- Additional Feature:Key-hole mounting design
- Additional Feature:Combination screw heads included
- Additional Feature:1/2-inch bottom knockouts
Two Galvanized Steel Round Electrical Box (4″)
Galvanized steel construction delivers superior metal durability for your ceiling and fixture installations. This two-pack of 4-inch round electrical boxes features UL514A certification and 1.6 mm thickness, ensuring reliable performance in residential, commercial, and industrial environments. Each box measures 4 inches in diameter with a 1/2-inch depth, making them ideal low-profile solutions for lighting fixtures and ceiling fans. The four selectable knockouts let you choose entry positions based on your wiring layout. A bottom ground emboss accommodates ground screws and wires safely. The corrosion-resistant galvanized finish withstands harsh conditions. Installation requires minimal effort due to the round design. Simply position the box in your ceiling opening, secure it, and route your wires through your selected knockout.
- Material Type:Galvanized steel
- Waterproof Rating:Non-waterproof
- Primary Application:Ceiling/wall lighting fixtures
- Capacity/Size Category:Medium (4 in round, 0.5 in deep)
- Installation Type:Simple round design mounting
- Certifications/Standards:UL514A certified
- Additional Feature:Bottom ground emboss feature
- Additional Feature:Four selectable knockout positions
- Additional Feature:1.6 mm thickness construction
Project BoxI P67 Waterproof Electronic Junction Box
Looking for premium protection that doesn’t compromise on durability? The Project BoxI P67 delivers upgraded IP67 waterproof defense with a pre-installed potted sealing gasket, eliminating manual installation steps. You’ll get heavy-duty ABS construction that withstands temperatures from -40°F to 185°F, plus UV exposure and harsh weather conditions. The box measures 3.9×2.7×2 inches with a 15A 600V 8P terminal block and 1 In/3 Out cable interface. Four M16 cable glands accommodate wire diameters of 4–8 mm. Built-in mounting ears allow you to secure the box directly to walls, fences, or flat surfaces without extra brackets. This junction box suits solar systems, security cameras, LED displays, and control panels in outdoor or industrial settings.
- Material Type:ABS plastic
- Waterproof Rating:IP67
- Primary Application:Outdoor electrical/solar systems
- Capacity/Size Category:Small (3.9 x 2.7 x 2 in)
- Installation Type:Wall/fence mounting with ears
- Certifications/Standards:None specified
- Additional Feature:Pre-installed potent sealing gasket
- Additional Feature:15A 600V terminal block
- Additional Feature:-40°F to 185°F temperature range
Wiremold Metal Raceway Power Outlet Box (BW2-D)
Need to add power outlets without cutting into walls? The Wiremold Metal Raceway Power Outlet Box (BW2-D) offers a practical solution. This on-wall system extends circuits for small surface nonmetallic raceway installations, allowing you to install fixtures and outlets while preserving drywall and plaster. The box features a generous fill capacity with a low-profile design, making it cost-effective and visually minimal. Installation requires no special tools or expertise, suiting do-it-yourself projects in home offices and recreation rooms. Wiremold components work together, reducing installation time. Use this outlet box in residential homes, educational settings, or healthcare facilities where you need flexible power distribution without structural modifications.
- Material Type:Metal raceway
- Waterproof Rating:Non-waterproof
- Primary Application:Surface-mounted power extension
- Capacity/Size Category:Medium surface mount
- Installation Type:On-wall surface mount
- Certifications/Standards:Legrand Wiremold brand
- Additional Feature:Low profile generous capacity
- Additional Feature:No drywall disturbance needed
- Additional Feature:Legrand brand trusted quality
Legrand Wiremold Outlet Box White (NMW2-D)
The Legrand Wiremold Outlet Box White (NMW2-D) offers a versatile solution for anyone expanding electrical circuits without cutting into walls. This nonmetallic raceway system lets you add outlets and fixtures to home offices, rec rooms, or workspaces while preserving drywall and plaster. The box features a low-profile design with generous fill capacity, accommodating multiple wires while maintaining an attractive appearance. Installation requires no special skills—you can mount it yourself following standard procedures. The system works seamlessly with other Wiremold products, reducing installation time and increasing flexibility. Use it for both power and communication cabling in residential, educational, and healthcare settings.
- Material Type:Metal raceway
- Waterproof Rating:Non-waterproof
- Primary Application:Surface-mounted power extension
- Capacity/Size Category:Medium surface mount
- Installation Type:Surface mount
- Certifications/Standards:Legrand Wiremold brand
- Additional Feature:Low profile generous capacity
- Additional Feature:Seamless product compatibility system
- Additional Feature:Enhanced flexible productivity design
ICC Low Profile Surface Mount Back Box White
When you’re running voice, data, CATV, fiber, audio, or video cables through your walls, you’ll want a back box that handles superior data applications without consuming precious wall space. The ICC Low Profile Surface Mount Back Box works with standard NEMA boxes and ICC faceplates, making installation straightforward. You can mount it using adhesive backing or screws, then secure faceplates with the included brass inserts. Internal cable routing keeps wires organized and out of sight. The white finish blends into most environments, and its durable construction supports both commercial and residential installations without compromising performance or reliability.
- Material Type:Plastic
- Waterproof Rating:Non-waterproof
- Primary Application:Voice/data/communications cabling
- Capacity/Size Category:Small (standard 1-gang)
- Installation Type:Adhesive or screw mounting
- Certifications/Standards:ICC compatible
- Additional Feature:Two #6-32 brass inserts
- Additional Feature:Internal cable routing management
- Additional Feature:Adhesive/screw mounting options
Cable Matters Low Voltage Surface Mount Backbox (5-Pack)
Looking to outfit multiple rooms with network drops without overspending? The Cable Matters 5-Pack offers a cost-effective solution for adding communications cables at surface-mountable locations. Each white box measures 4.5 inches long, 2.76 inches wide, and 1.85 inches deep—standard 1-gang dimensions that mount flush against walls or under furniture. The backbox includes multiple cut-outs for flexible cable routing and mounting options. You’ll mount them using provided screws or existing screw keyholes. Pair these boxes with Cable Matters keystone jack faceplates and blank inserts for customized network drops. The five-pack format makes this option ideal for larger installations across multiple rooms.
- Material Type:Plastic
- Waterproof Rating:Non-waterproof
- Primary Application:Low voltage communications drops
- Capacity/Size Category:Small (4.5 x 2.76 x 1.85 in)
- Installation Type:Surface box with screw keyholes
- Certifications/Standards:Cable Matters brand
- Additional Feature:1.85 inch depth design
- Additional Feature:Multiple cable routing cutouts
- Additional Feature:Keystone jack faceplate compatible

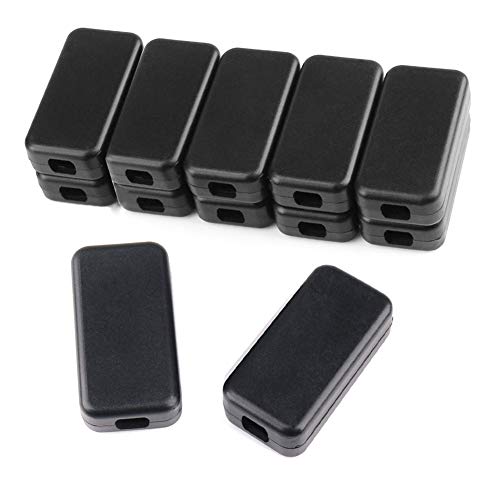

YXQ Waterproof Project Enclosure Case Junction Box (12-Pack)
Need compact wire management for tight spaces? The YXQ Waterproof Project Enclosure Case Junction Box offers a practical solution in a 12-pack. Each unit measures 1.4 x 0.6 x 0.27 inches, fitting easily into confined areas. The boxes come with pre-drilled holes, eliminating extra drilling work. Install them using surface mounting without requiring tools or screws. You can customize the enclosures through drilling, painting, punching, or silk-screen printing to match your project requirements. These waterproof cases work well for electronic projects, power supplies, student builds, and amplifiers. The small plastic construction keeps projects organized while protecting internal components from dust and moisture exposure.
- Material Type:ABS plastic
- Waterproof Rating:Waterproof
- Primary Application:Electronics projects/switches
- Capacity/Size Category:Extra-small (1.4 x 0.6 x 0.27 in)
- Installation Type:Surface mount (no tools)
- Certifications/Standards:None specified
- Additional Feature:Pre-drilled holes included
- Additional Feature:Surface mounted no tools
- Additional Feature:Drilling/painting customization possible
PVC Plastic Junction Box 9x6x3 IP65 Waterproof
The 9x6x3 PVC plastic junction box delivers superior overall performance for outdoor electrical installations. You’ll find pre-molded 3/4″ and 1″ punch-in holes that simplify setup without additional drilling. The IP65 rating protects against splashing water, rain, dust, snow, and UV exposure, making it suitable for residential wiring, machine connections, and motor enclosures. High-quality ABS plastic provides impact resistance and electrical insulation while rustproof screws ensure long-term outdoor reliability. Installation requires only a standard screwdriver to assemble and disassemble the sealed housing. You can use this box indoors or outdoors for lights, switches, outlets, and equipment protection across various applications.
- Material Type:ABS/PVC plastic
- Waterproof Rating:IP65
- Primary Application:Residential/outdoor electrical enclosures
- Capacity/Size Category:Large (9 x 6 x 3 in)
- Installation Type:Screw installation (disassembles easily)
- Certifications/Standards:None specified
- Additional Feature:Pre-molded punch-in holes
- Additional Feature:Rustproof screw fasteners included
- Additional Feature:Easy disassembly/reassembly design
Factors to Consider When Choosing a Low Profile Junction Box
When selecting a low profile junction box, you’ll need to evaluate five key factors: the depth and space available in your installation area, the material’s durability standards for your environment, the waterproof rating level required for moisture exposure, the cable capacity specifications to accommodate your wiring needs, and the installation method’s ease of setup. Start by measuring your available space and matching it to the box’s depth, then verify the material construction matches your climate conditions, check the IP rating against expected water or dust exposure, count your cables and confirm the box accommodates them, and finally confirm you can install it using your available tools and skill level. Each factor directly affects whether the junction box will function reliably in your specific application.
Depth And Space Requirements
How much depth can you actually work with in your installation space? Most low-profile junction boxes range from 1.24 to 1.85 inches deep, fitting snugly into tight areas where standard boxes won’t work. Measure your available space first—account for wall thickness, studs, and any existing fixtures. Next, check the box’s interior capacity, typically 6 to 8 cubic inches, which determines how many wires you can fit. A 4.25″ × 2.4″ × 1.24″ box holds four 14 AWG or three 12–10 AWG conductors comfortably. Compare external dimensions too; boxes around 3.9″ × 2.7″ × 2″ work in restricted spaces. Finally, verify knockout locations and sizes match your cable entries. Confirm depth won’t compress wires or prevent proper closure before purchasing.
Material Durability Standards
Why settle for a junction box that’ll crack or degrade within a few years? You need to examine material durability standards before purchasing. First, verify the box uses high-quality ABS or PVC materials, which provide impact resistance and electrical insulation. Second, check the IP rating—IP65 or IP67 ratings indicate adequate water and dust resistance for outdoor installations. Third, confirm flame-retardant ratings like V0, which reduce fire risk in enclosed spaces. Fourth, review temperature tolerance ranges; boxes rated -40°F to 185°F handle variable conditions reliably. Fifth, assess UV resistance for prolonged sun exposure. Finally, inspect construction details including gasket inclusions and the ability to drill without cracking. These standards ensure your junction box performs consistently throughout its lifespan.
Waterproof Rating Levels
The IP (Ingress Protection) rating system tells you exactly how well a junction box keeps water and dust out, and you’ll need to understand these numbers to pick the right box for your installation. IP65 boxes block water jets from any direction and protect against dust, making them suitable for most outdoor applications. IP67 boxes go further by offering immersion protection up to one meter for limited periods, ideal for areas prone to flooding or heavy rain. Assess your environment first: consider rain, dust, snow, oil splashes, and temporary immersion risks. For harsh outdoor conditions, select IP67 with rugged materials like ABS or galvanized steel. Remember that IP ratings don’t cover UV or fire resistance, so verify those separately if needed for your specific location.
Cable Capacity Specifications
When you’re selecting a low profile junction box, determining whether it’ll safely hold your wires is just as important as choosing the right waterproof rating. You need to match your conductor count and sizes to the box’s cubic-inch capacity. A box rated for 8 cubic inches can typically accommodate four 14 AWG wires or three 12/10 AWG wires. Always verify that your total wire fill meets code requirements for fill volume, not just physical space. This ensures proper insulation and safe terminations. Check the manufacturer’s specifications for maximum wire diameter—some boxes accept conductors up to 0.4 inches. When using multiple conduit entries, calculate the combined volume of all conductors, splices, and devices to confirm the box’ll meet code standards.
Installation Method Ease
How’ll you actually get that box mounted in your space? Start by checking whether the box features tool-free or minimal-tool installation options. Quick-drill compatibility and pre-punched knockouts eliminate extra steps in tight areas. Next, examine the mounting ears or brackets—these determine how securely you’ll fasten the box to studs or drywall. For remodel boxes, verify that the design allows you to access space behind the wall without requiring new stud work. Assess your specific constraints: measure your available depth and confirm the box fits your opening. Finally, gather only the tools the manufacturer specifies. This straightforward approach ensures fast, correct installation while avoiding installation delays or damage to surrounding materials.
Temperature Resistance Range
Why should you care about a junction box’s temperature resistance range? Your box must survive the temperatures where you’ll install it. Check your local climate conditions first. If you live in a cold region, you need boxes rated for -40°F or lower. Hot climates require ratings up to 185°F or higher. Next, identify where you’ll mount the box—indoors or outdoors. Outdoor boxes need UV-resistant materials like ABS or PC+ABS blends to prevent degradation from sun exposure. Review the gasket and seal specifications, as these components must maintain integrity during temperature changes. Finally, match the box’s temperature range to your internal components’ requirements. This ensures all parts function properly together without performance loss or material failure.
Fire Rating Compliance
Fire rating compliance guarantees your junction box won’t contribute to fire spread if exposed to flames or high heat, which is critical for safe electrical installations. Check the box’s flame-retardant rating—UL94-V0 and UL514C are standard certifications you’ll encounter. V0-rated materials resist ignition most effectively, making them suitable for commercial and industrial settings. V2-rated boxes work in less demanding environments. If you’re installing boxes in fire-rated walls, verify they’re tested for 2-hour fire resistance to maintain wall integrity. PC/ABS blends typically offer reliable ratings. Always cross-reference the manufacturer’s certification documentation against your local electrical codes before purchase. This step prevents installation delays and ensures your system meets safety requirements.
Wire Diameter Compatibility
When you’re selecting a low-profile junction box, checking wire diameter compatibility is essential because undersized openings can damage insulation and create fire hazards. First, identify the wire gauges you’ll run through the box—typically 14 AWG, 12 AWG, or 10 AWG. Next, verify that the box’s internal slots and openings accommodate these sizes without forcing wires together. Many models specify maximum wire diameters, such as 0.4 inches, so compare your conductor thickness against these limits. Review the box’s entry points and grommets to confirm they accept your cable types. Finally, cross-reference your wire count and gauges against the box’s cubic inch capacity to prevent overcrowding. This systematic approach prevents installation errors and ensures safe, code-compliant wiring.
Final Thoughts
You’ve reviewed eight top-rated low-profile junction boxes with varying capacities and protection ratings. Select your box based on three factors: your space depth, outdoor exposure needs, and wire count. Match IP65 ratings for damp areas and IP67 for wet locations. Verify cubic-inch capacity against your wiring requirements. Install using pre-punched knockouts and included mounting ears. You’ll secure reliable wire management without visible bulk or compromised safety.
