When you’re building a storage system that demands reliability and speed, you’ll need to pick the right SAS card. Your choice depends on three main factors: the data transfer rate you require, the number of drives you’re connecting, and your system’s PCIe generation. Understanding these basics helps you narrow down which card fits your setup—and there’s a clear hierarchy of options designed for different performance levels. Here’s what separates the best cards from the rest.
| SAS HBA Card LSI 9300-8i PCIe SATA Expansion |
| High-Speed Expansion | Data Transfer Rate: 12Gbps SAS, 6Gbps SATA | Port Count: 8-port | Controller Chip: LSI SAS3008 (12Gb/s) | VIEW LATEST PRICE | Read Our Analysis |
| SAS HBA Card 8-Port PCIe 3.0 Expansion Controller |
| Best Overall | Data Transfer Rate: 12Gbps SAS, 6Gbps SATA | Port Count: 8-port | Controller Chip: Broadcom/LSI SAS3008 (12Gb/s) | VIEW LATEST PRICE | Read Our Analysis |
| SAS HBA Card Compatible with LSI 9207-8i IT Mode |
| Mid-Range Standard | Data Transfer Rate: 6Gbps per port | Port Count: 8-port | Controller Chip: LSI SAS2308 | VIEW LATEST PRICE | Read Our Analysis |
| LSI SAS2308 6Gb/s PCI-E 3.0 HBA Controller with Cables |
| Budget Pick | Data Transfer Rate: 6Gbps | Port Count: 8-port | Controller Chip: LSI SAS2308 | VIEW LATEST PRICE | Read Our Analysis |
| SAS HBA Card LSI 9211-4I PCIe SATA Expansion |
| Compact Option | Data Transfer Rate: 6Gbps per port | Port Count: 4-port | Controller Chip: LSI SAS2008 | VIEW LATEST PRICE | Read Our Analysis |
| Internal PCI Express SAS/SATA RAID Controller Card |
| Value Performer | Data Transfer Rate: 6Gbps | Port Count: 8-port (via 2x SFF-8087) | Controller Chip: LSI SAS2008 | VIEW LATEST PRICE | Read Our Analysis |
| H!Fiber 6G PCIe SAS/SATA Controller Card (9200-8E) |
| External Flexibility | Data Transfer Rate: 6Gbps | Port Count: 8-port (via 2x SFF-8088) | Controller Chip: LSI SAS2008 | VIEW LATEST PRICE | Read Our Analysis |
| SAS HBA Card LSI 9211-4i PCIe Expansion Card |
| SAS-Ready Setup | Data Transfer Rate: 6Gbps per port | Port Count: 4-port | Controller Chip: LSI SAS2008 | VIEW LATEST PRICE | Read Our Analysis |
| SAS HBA Card LSI 9207-8i PCIe SATA Expansion |
| Professional Standard | Data Transfer Rate: 6Gbps SAS and SATA | Port Count: 8-port | Controller Chip: LSI SAS2308 | VIEW LATEST PRICE | Read Our Analysis |
More Details on Our Top Picks
SAS HBA Card LSI 9300-8i PCIe SATA Expansion
Need high-speed expansion for your NAS storage? The LSI 9300-8i offers 12Gbps SAS speeds through a PCIe 3.0 x8 interface. You’ll connect up to eight drives directly or expand further using external SAS expanders for larger arrays. The card includes two Mini-SAS HD SFF-8643 connectors and comes with two SFF-8643 to four SATA cables covering eight SATA ends. For SATA drives, use the included cables. For SAS drives, you’ll need to purchase SFF-8643 to 8482 SAS cables separately. This HBA controller runs in IT Mode without RAID functionality, making it ideal for ZFS, TrueNAS, unRAID, and Proxmox environments where you’ll manage storage directly.
- Data Transfer Rate:12Gbps SAS, 6Gbps SATA
- Port Count:8-port
- Controller Chip:LSI SAS3008 (12Gb/s)
- PCIe Interface:PCIe 3.0 x8
- Internal Connector Type:2x SFF-8643 (Mini-SAS HD)
- Firmware Mode:IT Mode (Non-RAID)
- Additional Feature:SFF-8643 to SATA cables included
- Additional Feature:SAS expander support expandable
- Additional Feature:ZFS/TrueNAS/unRAID optimized
SAS HBA Card 8-Port PCIe 3.0 Expansion Controller
What’s the most straightforward way to expand your storage infrastructure without sacrificing speed? The LANPAN 9300-9211 SAS HBA Card delivers eight ports using the Broadcom SAS3008 controller operating at 12Gbps. You’ll connect this PCIe 3.0 x8 card directly to your motherboard, then attach up to eight drives via two Mini-SAS HD connectors. The card ships with SATA cables only, so if you’re using SAS drives, purchase SFF-8643 to SFF-8482 cables separately. This IT Mode controller works with ZFS, TrueNAS, unRAID, and Proxmox systems across Windows, Linux, and macOS environments, making it suitable for serious NAS and home-lab storage setups.
- Data Transfer Rate:12Gbps SAS, 6Gbps SATA
- Port Count:8-port
- Controller Chip:Broadcom/LSI SAS3008 (12Gb/s)
- PCIe Interface:PCIe 3.0 x8
- Internal Connector Type:2x SFF-8643 (Mini-SAS HD)
- Firmware Mode:IT Mode (Non-RAID)
- Additional Feature:Compatible with 9211-8i/9300-8i
- Additional Feature:SFF-8643 to SATA cables included
- Additional Feature:No warranty provided
SAS HBA Card Compatible with LSI 9207-8i IT Mode
The LANPAN LSI 9207-8i HBA card represents the mid-range standard for storage professionals building ZFS, TrueNAS, or unRAID systems that demand reliable expansion without RAID complexity. This PCIe 3.0 x8 controller delivers 6Gbps per port across eight connections, supporting direct attachment of SATA drives through two Mini-SAS SFF-8087 connectors. You’ll receive SATA cables in the box, but SAS drives require separate SAS cables purchased separately. The IT Mode firmware strips away RAID processing, allowing your operating system full control over storage management. Deploy this card in virtualization environments like Proxmox and ESXi for direct device passthrough, or in Linux and Windows Server installations where transparent drive access matters most.
- Data Transfer Rate:6Gbps per port
- Port Count:8-port
- Controller Chip:LSI SAS2308
- PCIe Interface:PCIe 3.0 x8
- Internal Connector Type:2x SFF-8087 (Mini-SAS)
- Firmware Mode:IT Mode (Non-RAID)
- Additional Feature:SFF-8087 to SATA cables included
- Additional Feature:SAS expander expansion capability
- Additional Feature:Best Sellers Rank #5

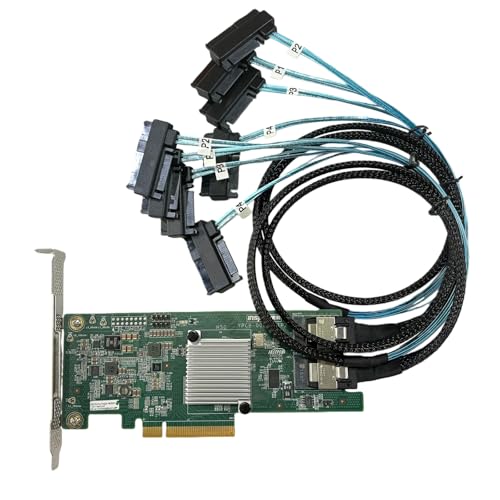

LSI SAS2308 6Gb/s PCI-E 3.0 HBA Controller with Cables
Looking for a budget-friendly SAS controller that handles multiple storage devices without breaking your setup costs? The YiBaoTong 9207-8i delivers eight ports for expanding your storage capacity. This LSI SAS2308 controller operates at 6Gb/s and fits into PCI-E 3.0 x8 slots. The IT mode firmware works with ZFS, FreeNAS, and unRAID systems. You’ll receive two SFF-8087 to SAS 482 cables for connecting your drives. Install the card into your motherboard, attach your storage devices using the included cables, and configure your OS settings. The standard bracket allows flexible mounting in various chassis types.
- Data Transfer Rate:6Gbps
- Port Count:8-port
- Controller Chip:LSI SAS2308
- PCIe Interface:PCIe 3.0 x8
- Internal Connector Type:2x SFF-8087 (Mini-SAS)
- Firmware Mode:IT Mode (Non-RAID)
- Additional Feature:SFF-8087 to SAS cables included
- Additional Feature:High/low profile brackets included
- Additional Feature:One year warranty included
SAS HBA Card LSI 9211-4I PCIe SATA Expansion
Consider the LSI 9211-4I if you’re building a compact option for direct storage expansion without RAID overhead. This card features the LSI SAS2008 controller and operates in IT mode, delivering 6Gb/s per port across four independent connections. You’ll connect up to four drives directly using the included SFF-8087 to SATA cable. For larger storage arrays, you can expand via an external SAS expander. The PCIe 2.0 x4 interface integrates into your system easily. This setup works well for ZFS, TrueNAS, unRAID, and JBOD configurations in home labs and servers.
- Data Transfer Rate:6Gbps per port
- Port Count:4-port
- Controller Chip:LSI SAS2008
- PCIe Interface:PCIe 2.0 x4
- Internal Connector Type:1x SFF-8087 (Mini-SAS)
- Firmware Mode:IT Mode (Non-RAID)
- Additional Feature:Four port configuration only
- Additional Feature:PCIe 2.0 x4 interface
- Additional Feature:Single SFF-8087 connector
Internal PCI Express SAS/SATA RAID Controller Card
Need a value performer that won’t drain your budget? The Internal PCI Express SAS/SATA RAID Controller Card delivers solid performance using the SAS2008 chip. You’ll connect up to 256 SAS and SATA devices through two Mini SAS SFF-8087 ports, achieving 6Gb/s link rates. The card operates on PCIe 2.0, offering X8 lane connectivity. Installation includes a low-profile bracket for standard cases. Note that this controller doesn’t support hot swapping, so plan device replacements during downtime. You’ll receive a driver CD and can download updates from 10Gtek’s website. The package includes a three-year warranty and lifetime technology support, making it a practical choice for budget-conscious builds requiring RAID capabilities.
- Data Transfer Rate:6Gbps
- Port Count:8-port (via 2x SFF-8087)
- Controller Chip:LSI SAS2008
- PCIe Interface:PCIe 2.0 x8
- Internal Connector Type:2x SFF-8087 (Mini-SAS)
- Firmware Mode:RAID-capable (standard)
- Additional Feature:Driver CD included
- Additional Feature:Three year free warranty
- Additional Feature:Lifetime technology support
H!Fiber 6G PCIe SAS/SATA Controller Card (9200-8E)
The H!Fiber 6G PCIe SAS/SATA Controller Card (9200-8E) delivers external flexibility for professionals who need to expand storage capacity without internal slot limitations. This LSI SAS 2008-based adapter connects via PCIe x8 and supports up to 512 SAS/SATA devices through two SFF-8088 ports. You’ll achieve transfer rates up to 6 Gb/s for reliable performance. The card includes both low-profile and full-height brackets, fitting standard and slim systems. Compatible with Windows, Linux, VMware ESXi, and SLES environments, it supports JBOD configurations. H!Fiber backs this card with 3-year warranty coverage, 24/7 customer service, and lifetime technology support, ensuring dependable operation for demanding storage applications.
- Data Transfer Rate:6Gbps
- Port Count:8-port (via 2x SFF-8088)
- Controller Chip:LSI SAS2008
- PCIe Interface:PCIe x8
- Internal Connector Type:2x SFF-8088 (external Mini-SAS)
- Firmware Mode:JBOD/Non-RAID support
- Additional Feature:External card configuration design
- Additional Feature:Full-height and low-profile brackets
- Additional Feature:QR code driver download
SAS HBA Card LSI 9211-4i PCIe Expansion Card
Looking to expand your NAS storage without RAID complications? The LSI 9211-4i HBA card delivers straightforward drive management through IT Mode firmware. This 4-port controller supports 6Gb/s speeds per port over PCIe 2.0, connecting up to four drives via a single SFF-8087 connector. You’ll receive the card and an SFF-8087 to quad 8482 cable for immediate installation. For larger arrays, attach an external SAS Expander to the mini SAS port. IT Mode operation means your drives operate independently, ideal for ZFS, TrueNAS, and unRAID systems. Install the card in an available PCIe slot, connect your drives, and configure your storage software accordingly.
- Data Transfer Rate:6Gbps per port
- Port Count:4-port
- Controller Chip:LSI SAS2008
- PCIe Interface:PCIe 2.0 x4
- Internal Connector Type:1x SFF-8087 (Mini-SAS)
- Firmware Mode:IT Mode (Non-RAID)
- Additional Feature:SFF-8087 to SAS cables included
- Additional Feature:Four port configuration only
- Additional Feature:JBOD passthrough compatible
SAS HBA Card LSI 9207-8i PCIe SATA Expansion
LSI’s 9207-8i represents the professional standard for direct-attached storage in software-defined environments. You’ll connect up to eight drives directly to this card’s two Mini-SAS connectors using the included SFF-8087 to SATA cables. The LSI SAS2308 controller runs in IT Mode, passing drives through without RAID processing—ideal for ZFS, TrueNAS, and unRAID systems. If you’re adding SAS drives instead of SATA, purchase SFF-8087 to SAS cables separately. For larger arrays, connect an external SAS expander to scale beyond eight drives. The PCIe 3.0 x8 interface delivers up to 6Gbps per lane, supporting high-speed storage configurations in home labs and production NAS deployments.
- Data Transfer Rate:6Gbps SAS and SATA
- Port Count:8-port
- Controller Chip:LSI SAS2308
- PCIe Interface:PCIe 3.0 x8
- Internal Connector Type:2x SFF-8087 (Mini-SAS)
- Firmware Mode:IT Mode (Non-RAID)
- Additional Feature:Dual SFF-8087 connectors included
- Additional Feature:Two SATA cable sets included
- Additional Feature:SAS expander expansion capable
Factors to Consider When Choosing a SAS Card for PC
When you’re selecting a SAS card for your PC, you’ll need to evaluate five key factors: the controller chip’s performance rating, your motherboard’s PCIe slot version and available lanes, the total storage capacity you plan to connect, the specific cable connectors your drives require, and whether the card supports your operating system. Start by checking your motherboard’s PCIe generation (Gen 3, Gen 4, or Gen 5) and confirm the card matches or exceeds it, then verify that your chosen card’s drivers are available for Windows, Linux, or your preferred OS. Finally, count your drive bays, measure your cable types against what the card provides, and confirm the controller chip meets your speed requirements before making your purchase.
Controller Chip Performance
What’s the single most important component that determines your SAS card’s actual speed and capabilities? The controller chip itself. You’ll find chips like the LSI SAS2308 supporting 6Gbps per port, while newer SAS3008 models handle 12Gbps. Your chip choice directly impacts port count—typically 4 or 8 ports—and determines how many drives you can connect directly. Check your controller’s specifications to verify data rate per port. The chip also enables external SAS expanders, allowing you to scale beyond direct attachments. When selecting a card, prioritize the controller type that matches your performance requirements and drive count needs. Different chips support different expansion capabilities, so match your setup’s demands to the controller’s actual specifications.
PCIe Interface Compatibility
Your motherboard’s PCIe slot must match your SAS card’s PCIe specification to avoid performance bottlenecks and guarantee proper function. Check your card’s version—PCIe 2.0, 3.0, or 4.0—and confirm your motherboard supports at least that speed. Verify the lane count: x4, x8, or x16. Cards with multiple SAS ports typically need PCIe x8 for optimal throughput. If your motherboard has only PCIe 2.0 slots, a newer card will work but won’t reach full bandwidth. Count your available slots and ensure they match the card’s physical dimensions. Mismatched specifications reduce data transfer speeds and may cause installation failures. Document your motherboard’s exact PCIe capabilities before purchasing to guarantee compatibility and performance.
Drive Capacity Requirements
Several critical factors determine whether a SAS card‘ll handle your storage needs without creating performance bottlenecks. First, count the total drives you’ll attach directly to the card—whether 4, 8, or more—and verify the card has enough ports. Next, check the per-port data rate: 6 Gb/s or 12 Gb/s options exist, and you’ll want speeds matching your drives’ capabilities. Then examine the internal connectors, like SFF-8087 or SFF-8643, ensuring they match your SATA or SAS drives. Finally, plan for future growth by confirming the card’s chipset and firmware support external SAS expanders. This preparation prevents undersized purchases that force costly upgrades later.
Cable Connector Type
Cable connector types directly affect whether your SAS card will work with your drives and expanders, so you’ll need to match the card’s internal ports to the cables and devices you’re using. Most 8-port SAS cards feature two Mini-SAS HD (SFF-8643) connectors, while smaller 4-port cards typically have one Mini-SAS (SFF-8087) connector. If you’re using SAS drives, you’ll need SAS-specific cables like SFF-8643 to SFF-8482 variants. For SATA-only setups, some packages include SATA cables, but verify compatibility before purchasing. SAS 6Gb/s and 12Gb/s (SAS3) connectors determine your maximum data rate per link and expander compatibility. Check your card’s connector type against your existing infrastructure to avoid incompatible purchases.
Operating System Support
What operating system’ll you be running on your server or workstation? This determines your SAS card choice considerably. IT Mode firmware offers the broadest compatibility across Windows, Linux, and macOS by exposing drives directly without vendor-specific RAID drivers. Check the manufacturer’s website for driver availability matching your exact OS version and kernel updates. Some cards include driver CDs; others require downloads before installation. Verify PCIe interface compatibility with your motherboard, as version mismatches (like PCIe 3.0 x8) can affect driver loading and hot-plug behavior. If you’re using SAS expanders or JBOD setups with software-defined storage like ZFS or unRAID, confirm the HBA supports IT Mode and relies on OS-provided drivers rather than vendor RAID tools for proper functionality.
Final Thoughts
You’ll choose your SAS card based on three priorities: drive count, budget, and system compatibility. For maximum speed, pick the 9300-8i with 12Gb/s support. For budget builds, select the 9207-8i or SAS2308 in IT mode. Verify your PCIe slot supports x8 bandwidth, confirm connector types match your drives, and check driver availability for your OS before purchasing.
